Car Sharing Hardware used by the biggest carsharing companies

Trusted by the major car sharing services,AVIS and Hyundai, WorldWide Mobility's Car Sharing Hardware ensures efficient vehicle digitization without external providers. Discover why it's preferred by top carsharing leaders worldwide.

Companies using our carsharing Hardware and Software

Our car sharing hardware is designed with the highest quality standards by our engineers.Proprietary design that incorporates LTE-M communication with 2G fallback. Communication with backend through MQTT protocol designed for IoT, offering maximum reliability and security. The device incorporates bluetooth 5 with encrypted communications, low consumption and a locator that allows use of GPS, Galileo, Glonass and BeiDou networks, for a more precise geolocation.

Car Sharing Hardware Technical Factors

CAN interface installation

  • Easy installation, Plug & Play, without manipulation of cables in the vehicle that affect the warranty.
  • Cost optimization without the need for additional modules.
  • Robust operation.
  • High speed communication.
  • High ESD protection IEC61000-4-2> 8kV.
  • ISO-11898-5.
  • AEC-Q100 Grade 0.

Based on 2G/4G Ublox high sensitivity modems

  • Leader in the latest generation modems market.
  • Incorporates an additional high sensitivity amplifier.
  • Improves modem power by 3dB versus competing manufacturers and achieves 23dB for optimal LTE coverage. Increase of 2G and 4G coverage in situations of shortage of coverage such as parkings or tunnels.
  • Dedicated circuit that avoids multiplexing micro-cuts that suffer from competitive modems.

Dedicated GNSS positioning module

Our Hardware incorporates a dedicated high precision positioning module.

  • Greater sensitivity (up to -167 dBm), coverage and precision.
  • Shorter positioning time.
  • Triple simultaneous concurrency GPS: Galileo, GLONASS, BeiDou improves sensitivity and precision for the networks to be used simultaneously. Geolocate our devices can use triangulation on LTE stations to estimate vehicle position when there is no GPS coverage.

External and dedicated GNSS and LTE antennas

We use external dedicated antennas, due to their higher sensitivity and signal quality.

  • Better coverage.
  • Better precision.
  • Installation flexibility.
  • Use of active antennas that increase sensitivity.
  • Easy replacement.

AES 256 encrypted Bluetooth communications and proprietary protocol

Security is the fundamental pillar of our hardware

  • Dedicated cryptographic module.
  • TLS 1.2 communications.
  • Encrypted BLUE communications.
  • GNSS module with jamming and spoofing detection.
  • NIST standard P256 elliptic curve support (ECC)
  • Support (FIPS) 140-2.

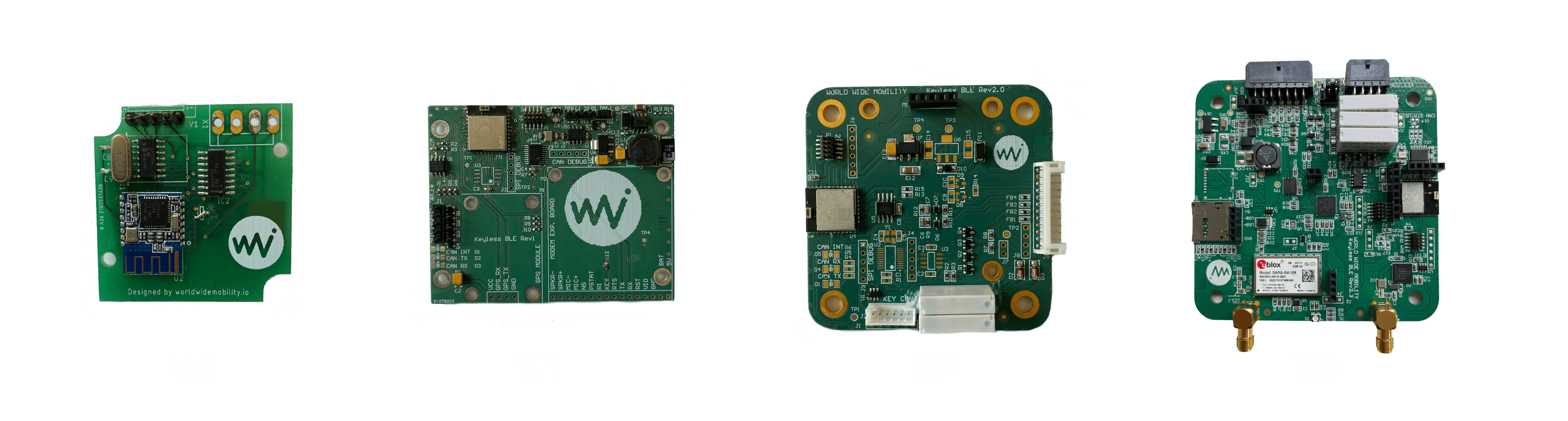

Evolution of our Car Sharing Hardware

evolution of hardware

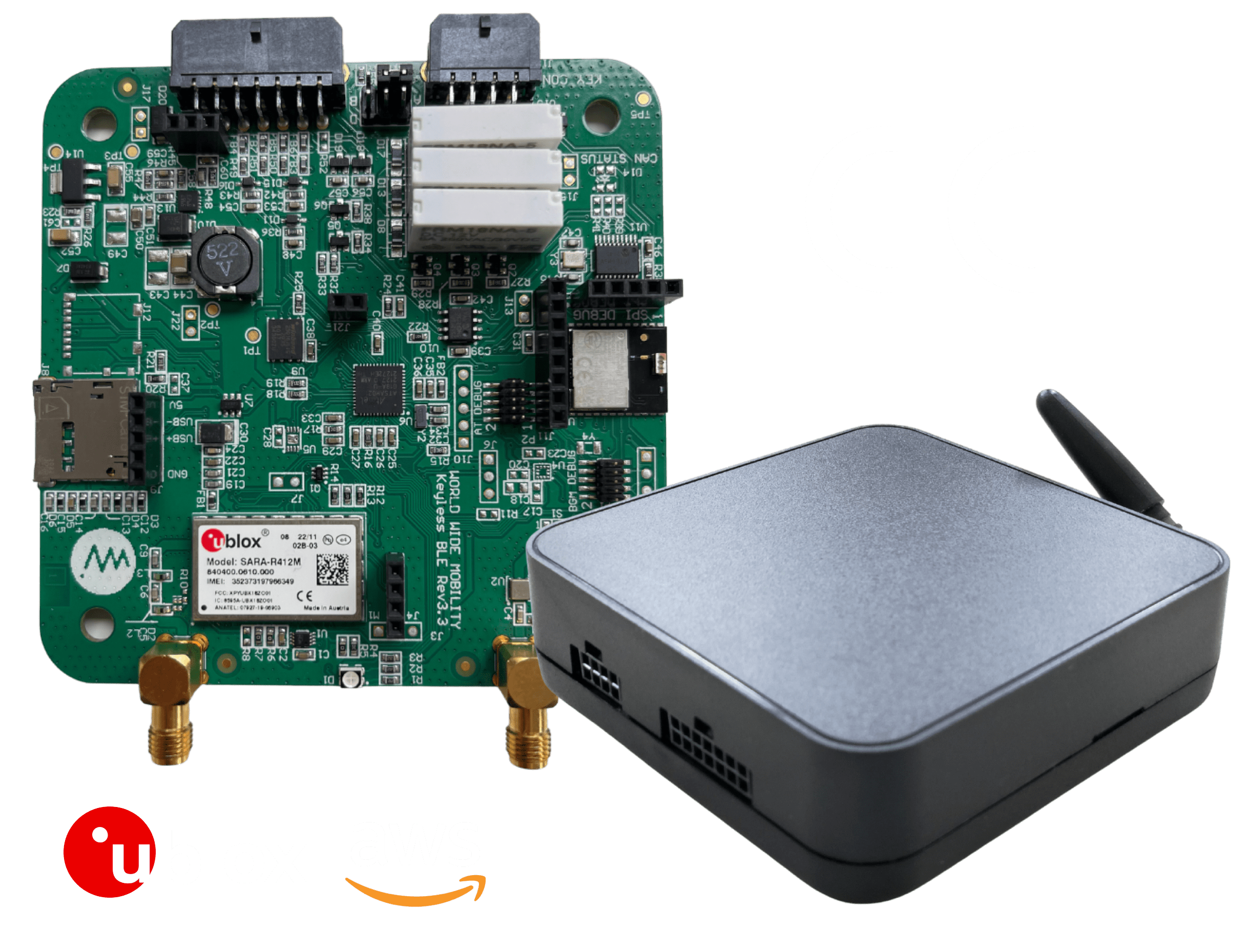

Car Sharing Hardware Compliance with CE Regulations: The hardware has been audited and we have obtained the distribution qualification according to CE regulations.

EU DECLARATION OF CONFORMITY

Declares that the design and construction of the PRODUCT complies with the relevant Union harmonization legislation:

2014/53/UE – Radio equipment

2011/65/UE – ROHS amended by 2015/863/UE

  • Safety (Art. 3.1 (a) of RE Directive):
  • EN IEC 62368-1:2020
  • EN 62311:2020
  • EMC (Art. 3.1 (b) of RE Directive):
  • EN 55032:2015+A11:2020
  • EN 55035:2017+A11:2020
  • EN 301 489-1
  • EN 301 489-17
  • EN 301 489-19
  • EN 301 489-52
  • Radio (Art. 3.2 of RE Directive):
  • EN 301 908-1
  • EN 301 908-13
  • EN 303 413
  • ROHS:
  • EN IEC 63000:2018
